| Java2D: An Introduction and Tutorial |
|---|
|
| Java Programming Resources home. | Core Web Programming home. | |
|---|
This
tutorial © Marty Hall. Created for
work in the Research and Technology
Development Center of the Johns Hopkins
University Applied Physics Lab, for courses in the Johns Hopkins Part-Time MS Program in Computer Science, and
for various industry seminars and Java short
courses.
Note: An updated and expanded version of this
material appears in Core Web Programming 2nd Edition. All source code (plus sample
chapters) is available at http://www.corewebprogramming.com/.
| Java 1.1 | Java 1.2 | |
|---|---|---|
public void paint(Graphics g) {
// Set pen parameters
g.setColor(someColor);
g.setFont(someLimitedFont);
// Draw a shape
g.drawString(...);
g.drawLine(...)
g.drawRect(...); // outline
g.fillRect(...); // solid
g.drawPolygon(...); // outline
g.fillPolygon(...); // solid
g.drawOval(...); // outline
g.fillOval(...); // solid
...
}
| public void paintComponent(Graphics g) {
// Clear off-screen bitmap
super.paintComponent(g);
// Cast Graphics to Graphics2D
Graphics2D g2d = (Graphics2D)g;
// Set pen parameters
g2d.setPaint(fillColorOrPattern);
g2d.setStroke(penThicknessOrPattern);
g2d.setComposite(someAlphaComposite);
g2d.setFont(anyFont);
g2d.translate(...);
g2d.rotate(...);
g2d.scale(...);
g2d.shear(...);
g2d.setTransform(someAffineTransform);
// Allocate a shape
SomeShape s = new SomeShape(...);
// Draw shape
g2d.draw(s); // outline
g2d.fill(s); // solid
}
|
public void paintComponent(Graphics g) {
super.paintComponent(g); // Typical Swing approach
Graphics2D g2d = (Graphics2D)g;
g2d.doSomeStuff(...);
...
}
Rectangle2D.Double rect = ...; Ellipse2D.Double ellipse = ...; Polygon poly = ...; GeneralPath path = ...; SomeShapeYouDefined shape = ...; // Satisfies Shape interface ...
g2d.setPaint(fillColorOrPattern); g2d.setStroke(penThicknessOrPattern); g2d.setComposite(someAlphaComposite); g2d.setFont(someFont); g2d.translate(...); g2d.rotate(...); g2d.scale(...); g2d.shear(...); g2d.setTransform(someAffineTransform);
g2d.draw(someShape); g2d.fill(someShape);
public void paintComponent(Graphics g) {
super.paintComponent(g);
Graphics2D g2d = (Graphics2D)g;
// Assume x, y, and diameter are instance variables
Ellipse2D.Double circle =
new Ellipse2D.double(x, y, diameter, diameter);
g2d.fill(circle);
...
}
You can still call the drawXxx methods if you like, however. This is
necessary for drawString and drawImage, and possibly convenient for draw3DRect.
Several classes have similar versions that store coordinates as either double
precision numbers (Xxx.Double) or single precision numbers (Xxx.Float). The idea
is that single precision coordinates might be slightly faster to manipulate on
some platforms.
import javax.swing.*; // For JPanel, etc.
import java.awt.*; // For Graphics, etc.
import java.awt.geom.*; // For Ellipse2D, etc.
/** An example of drawing/filling shapes with Java2D in Java 1.2.
*
* From tutorial on learning Java2D at
* http://www.apl.jhu.edu/~hall/java/Java2D-Tutorial.html
*
* 1998 Marty Hall, http://www.apl.jhu.edu/~hall/java/
*/
public class ShapeExample extends JPanel {
private Ellipse2D.Double circle =
new Ellipse2D.Double(10, 10, 350, 350);
private Rectangle2D.Double square =
new Rectangle2D.Double(10, 10, 350, 350);
public void paintComponent(Graphics g) {
clear(g);
Graphics2D g2d = (Graphics2D)g;
g2d.fill(circle);
g2d.draw(square);
}
// super.paintComponent clears offscreen pixmap,
// since we're using double buffering by default.
protected void clear(Graphics g) {
super.paintComponent(g);
}
protected Ellipse2D.Double getCircle() {
return(circle);
}
public static void main(String[] args) {
WindowUtilities.openInJFrame(new ShapeExample(), 380, 400);
}
}
import javax.swing.*;
import java.awt.*;
/** A few utilities that simplify testing of windows in Swing.
* 1998 Marty Hall, http://www.apl.jhu.edu/~hall/java/
*/
public class WindowUtilities {
/** Tell system to use native look and feel, as in previous
* releases. Metal (Java) LAF is the default otherwise.
*/
public static void setNativeLookAndFeel() {
try {
UIManager.setLookAndFeel(UIManager.getSystemLookAndFeelClassName());
} catch(Exception e) {
System.out.println("Error setting native LAF: " + e);
}
}
/** A simplified way to see a JPanel or other Container.
* Pops up a JFrame with specified Container as the content pane.
*/
public static JFrame openInJFrame(Container content,
int width,
int height,
String title,
Color bgColor) {
JFrame frame = new JFrame(title);
frame.setBackground(bgColor);
content.setBackground(bgColor);
frame.setSize(width, height);
frame.setContentPane(content);
frame.addWindowListener(new ExitListener());
frame.setVisible(true);
return(frame);
}
/** Uses Color.white as the background color. */
public static JFrame openInJFrame(Container content,
int width,
int height,
String title) {
return(openInJFrame(content, width, height, title, Color.white));
}
/** Uses Color.white as the background color, and the
* name of the Container's class as the JFrame title.
*/
public static JFrame openInJFrame(Container content,
int width,
int height) {
return(openInJFrame(content, width, height,
content.getClass().getName(),
Color.white));
}
}
import java.awt.*;
import java.awt.event.*;
/** A listener that you attach to the top-level Frame or JFrame of
* your application, so quitting the frame exits the application.
* 1998 Marty Hall, http://www.apl.jhu.edu/~hall/java/
*/
public class ExitListener extends WindowAdapter {
public void windowClosing(WindowEvent event) {
System.exit(0);
}
}
import java.awt.*;
/** An example of gradient fills with Java2D in Java 1.2.
*
* From tutorial on learning Java2D at
* http://www.apl.jhu.edu/~hall/java/Java2D-Tutorial.html
*
* 1998 Marty Hall, http://www.apl.jhu.edu/~hall/java/
*/
public class GradientPaintExample extends ShapeExample {
// Red at (0,0), yellow at (175,175), changes gradually between.
private GradientPaint gradient =
new GradientPaint(0, 0, Color.red, 175, 175, Color.yellow,
true); // true means to repeat pattern
public void paintComponent(Graphics g) {
clear(g);
Graphics2D g2d = (Graphics2D)g;
drawGradientCircle(g2d);
}
protected void drawGradientCircle(Graphics2D g2d) {
g2d.setPaint(gradient);
g2d.fill(getCircle());
g2d.setPaint(Color.black);
g2d.draw(getCircle());
}
public static void main(String[] args) {
WindowUtilities.openInJFrame(new GradientPaintExample(),
380, 400);
}
}
Note, however, that as of JDK1.2beta4, tiled images fail when used in conjunction with rotation transformations.
import javax.swing.*;
import java.awt.*;
import java.awt.geom.*;
import java.awt.image.*;
/** An example of using TexturePaint to fill objects with tiled
* images. Uses the getBufferedImage method of ImageUtilities to
* load an Image from a file and turn that into a BufferedImage.
*
* From tutorial on learning Java2D at
* http://www.apl.jhu.edu/~hall/java/Java2D-Tutorial.html
*
* 1998 Marty Hall, http://www.apl.jhu.edu/~hall/java/
*/
public class TiledImages extends JPanel {
private String dir = System.getProperty("user.dir");
private String imageFile1 = dir + "/images/marty.jpg";
private TexturePaint imagePaint1;
private Rectangle imageRect;
private String imageFile2 = dir + "/images/bluedrop.gif";
private TexturePaint imagePaint2;
private int[] xPoints = { 30, 700, 400 };
private int[] yPoints = { 30, 30, 600 };
private Polygon imageTriangle = new Polygon(xPoints, yPoints, 3);
public TiledImages() {
BufferedImage image =
ImageUtilities.getBufferedImage(imageFile1, this);
imageRect =
new Rectangle(235, 70, image.getWidth(), image.getHeight());
imagePaint1 =
new TexturePaint(image, imageRect);
image = ImageUtilities.getBufferedImage(imageFile2, this);
imagePaint2 =
new TexturePaint(image, new Rectangle(0, 0, 32, 32));
}
public void paintComponent(Graphics g) {
super.paintComponent(g);
Graphics2D g2d = (Graphics2D)g;
g2d.setPaint(imagePaint2);
g2d.fill(imageTriangle);
g2d.setPaint(Color.blue);
g2d.setStroke(new BasicStroke(5));
g2d.draw(imageTriangle);
g2d.setPaint(imagePaint1);
g2d.fill(imageRect);
g2d.setPaint(Color.black);
g2d.draw(imageRect);
}
public static void main(String[] args) {
WindowUtilities.openInJFrame(new TiledImages(), 750, 650);
}
}
import java.awt.*;
import java.awt.image.*;
/** A class that simplifies a few common image operations, in
* particular creating a BufferedImage from an image file, and
* using MediaTracker to wait until an image or several images are
* done loading.
*
* From tutorial on learning Java2D at
* http://www.apl.jhu.edu/~hall/java/Java2D-Tutorial.html
*
* 1998 Marty Hall, http://www.apl.jhu.edu/~hall/java/
*/
public class ImageUtilities {
/** Create Image from a file, then turn that into a BufferedImage.
*/
public static BufferedImage getBufferedImage(String imageFile,
Component c) {
Image image = c.getToolkit().getImage(imageFile);
waitForImage(image, c);
BufferedImage bufferedImage =
new BufferedImage(image.getWidth(c), image.getHeight(c),
BufferedImage.TYPE_INT_RGB);
Graphics2D g2d = bufferedImage.createGraphics();
g2d.drawImage(image, 0, 0, c);
return(bufferedImage);
}
/** Take an Image associated with a file, and wait until it is
* done loading. Just a simple application of MediaTracker.
* If you are loading multiple images, don't use this
* consecutive times; instead use the version that takes
* an array of images.
*/
public static boolean waitForImage(Image image, Component c) {
MediaTracker tracker = new MediaTracker(c);
tracker.addImage(image, 0);
try {
tracker.waitForAll();
} catch(InterruptedException ie) {}
return(!tracker.isErrorAny());
}
/** Take some Images associated with files, and wait until they
* are done loading. Just a simple application of MediaTracker.
*/
public static boolean waitForImages(Image[] images, Component c) {
MediaTracker tracker = new MediaTracker(c);
for(int i=0; i<images.length; i++)
tracker.addImage(images[i], 0);
try {
tracker.waitForAll();
} catch(InterruptedException ie) {}
return(!tracker.isErrorAny());
}
}
import javax.swing.*;
import java.awt.*;
import java.awt.geom.*;
/** An illustration of the use of AlphaComposite to make partially
* transparent drawings.
*
* From tutorial on learning Java2D at
* http://www.apl.jhu.edu/~hall/java/Java2D-Tutorial.html
*
* 1998 Marty Hall, http://www.apl.jhu.edu/~hall/java/
*/
public class TransparencyExample extends JPanel {
private static int gap=10, width=60, offset=20,
deltaX=gap+width+offset;
private Rectangle
blueSquare = new Rectangle(gap+offset, gap+offset, width, width),
redSquare = new Rectangle(gap, gap, width, width);
private AlphaComposite makeComposite(float alpha) {
int type = AlphaComposite.SRC_OVER;
return(AlphaComposite.getInstance(type, alpha));
}
private void drawSquares(Graphics2D g2d, float alpha) {
Composite originalComposite = g2d.getComposite();
g2d.setPaint(Color.blue);
g2d.fill(blueSquare);
g2d.setComposite(makeComposite(alpha));
g2d.setPaint(Color.red);
g2d.fill(redSquare);
g2d.setComposite(originalComposite);
}
public void paintComponent(Graphics g) {
super.paintComponent(g);
Graphics2D g2d = (Graphics2D)g;
for(int i=0; i<11; i++) {
drawSquares(g2d, i*0.1F);
g2d.translate(deltaX, 0);
}
}
public static void main(String[] args) {
String title = "Transparency example: alpha of the top (red) " +
"square ranges from 0.0 at the left to 1.0 at " +
"the right. Bottom (blue) square is opaque.";
WindowUtilities.openInJFrame(new TransparencyExample(),
11*deltaX + 2*gap, deltaX + 3*gap,
title, Color.lightGray);
}
}
You can also use arbitrary local fonts if you first look up the entire list, which may take a few seconds. Lookup the fonts via the getAvailableFontFamilyNames or getAllFonts methods of GraphicsEnvironment. E.g.:
GraphicsEnvironment env =
GrapicsEnvironment.getLocalGraphicsEnvironment();
Then env.getAvailableFontFamilyNames();or
env.getAllFonts(); // Much slower!Despite a misleading description in the API, trying to use an available local font in JDK 1.2 without first looking up the fonts as above gives the same result as asking for an unavailable font: a default font instead of the actual one. Note that
getAllFonts returns an array of real
Font objects that you can use like any other Font, but
is much slower. If all you need to do is tell Java to make all local
fonts available, always use getAvailableFontFamilyNames.
The best approach would be to loop down getAvailableFontFamilyNames, checking for your name, having several backup names to use if the first choice is not available. If you pass an unavailable family name to the Font constructor, a default font (SansSerif) will be used.
import java.awt.*;
/** Lists the names of all available fonts with Java2D in Java 1.2.
*
* From tutorial on learning Java2D at
* http://www.apl.jhu.edu/~hall/java/Java2D-Tutorial.html
*
* 1998 Marty Hall, http://www.apl.jhu.edu/~hall/java/
*/
public class ListFonts {
public static void main(String[] args) {
GraphicsEnvironment env =
GraphicsEnvironment.getLocalGraphicsEnvironment();
String[] fontNames = env.getAvailableFontFamilyNames();
System.out.println("Available Fonts:");
for(int i=0; i<fontNames.length; i++)
System.out.println(" " + fontNames[i]);
}
}
import java.awt.*;
/** An example of using local fonts with Java2D in Java 1.2.
*
* From tutorial on learning Java2D at
* http://www.apl.jhu.edu/~hall/java/Java2D-Tutorial.html
*
* 1998 Marty Hall, http://www.apl.jhu.edu/~hall/java/
*/
public class FontExample extends GradientPaintExample {
public FontExample() {
GraphicsEnvironment env =
GraphicsEnvironment.getLocalGraphicsEnvironment();
env.getAvailableFontFamilyNames();
setFont(new Font("Goudy Handtooled BT", Font.PLAIN, 100));
}
protected void drawBigString(Graphics2D g2d) {
g2d.setPaint(Color.black);
g2d.drawString("Java 2D", 25, 215);
}
public void paintComponent(Graphics g) {
clear(g);
Graphics2D g2d = (Graphics2D)g;
drawGradientCircle(g2d);
drawBigString(g2d);
}
public static void main(String[] args) {
WindowUtilities.openInJFrame(new FontExample(), 380, 400);
}
}
import java.awt.*;
/** An example of Stroke (pen) widths with Java2D in Java 1.2.
*
* From tutorial on learning Java2D at
* http://www.apl.jhu.edu/~hall/java/Java2D-Tutorial.html
*
* 1998 Marty Hall, http://www.apl.jhu.edu/~hall/java/
*/
public class StrokeThicknessExample extends FontExample {
public void paintComponent(Graphics g) {
clear(g);
Graphics2D g2d = (Graphics2D)g;
drawGradientCircle(g2d);
drawBigString(g2d);
drawThickCircleOutline(g2d);
}
protected void drawThickCircleOutline(Graphics2D g2d) {
g2d.setPaint(Color.blue);
g2d.setStroke(new BasicStroke(8)); // 8-pixel wide pen
g2d.draw(getCircle());
}
public static void main(String[] args) {
WindowUtilities.openInJFrame(new StrokeThicknessExample(),
380, 400);
}
}
import java.awt.*;
/** An example of dashed lines with Java2D in Java 1.2.
*
* From tutorial on learning Java2D at
* http://www.apl.jhu.edu/~hall/java/Java2D-Tutorial.html
*
* 1998 Marty Hall, http://www.apl.jhu.edu/~hall/java/
*/
public class DashedStrokeExample extends FontExample {
public void paintComponent(Graphics g) {
clear(g);
Graphics2D g2d = (Graphics2D)g;
drawGradientCircle(g2d);
drawBigString(g2d);
drawDashedCircleOutline(g2d);
}
protected void drawDashedCircleOutline(Graphics2D g2d) {
g2d.setPaint(Color.blue);
// 30 pixel line, 10 pixel gap, 10 pixel line, 10 pixel gap
float[] dashPattern = { 30, 10, 10, 10 };
g2d.setStroke(new BasicStroke(8, BasicStroke.CAP_BUTT,
BasicStroke.JOIN_MITER, 10,
dashPattern, 0));
g2d.draw(getCircle());
}
public static void main(String[] args) {
WindowUtilities.openInJFrame(new DashedStrokeExample(),
380, 400);
}
}
import javax.swing.*;
import java.awt.*;
import java.awt.geom.*;
/** An example of line cap and join styles with Java2D in Java 1.2.
*
* From tutorial on learning Java2D at
* http://www.apl.jhu.edu/~hall/java/Java2D-Tutorial.html
*
* 1998 Marty Hall, http://www.apl.jhu.edu/~hall/java/
*/
public class LineStyles extends JPanel {
private GeneralPath path;
private static int x = 30, deltaX = 150, y = 300, deltaY = 250,
thickness = 40;
private Circle p1Large, p1Small, p2Large, p2Small, p3Large, p3Small;
private int compositeType = AlphaComposite.SRC_OVER;
private AlphaComposite transparentComposite =
AlphaComposite.getInstance(compositeType, 0.4F);
private int[] caps =
{ BasicStroke.CAP_SQUARE, BasicStroke.CAP_BUTT,
BasicStroke.CAP_ROUND };
private String[] capNames =
{ "CAP_SQUARE", "CAP_BUTT", "CAP_ROUND" };
private int[] joins =
{ BasicStroke.JOIN_MITER, BasicStroke.JOIN_BEVEL,
BasicStroke.JOIN_ROUND };
private String[] joinNames =
{ "JOIN_MITER", "JOIN_BEVEL", "JOIN_ROUND" };
public LineStyles() {
path = new GeneralPath();
path.moveTo(x, y);
p1Large = new Circle(x, y, thickness/2);
p1Small = new Circle(x, y, 2);
path.lineTo(x + deltaX, y - deltaY);
p2Large = new Circle(x + deltaX, y - deltaY, thickness/2);
p2Small = new Circle(x + deltaX, y - deltaY, 2);
path.lineTo(x + 2*deltaX, y);
p3Large = new Circle(x + 2*deltaX, y, thickness/2);
p3Small = new Circle(x + 2*deltaX, y, 2);
setForeground(Color.blue);
setFont(new Font("SansSerif", Font.BOLD, 20));
}
public void paintComponent(Graphics g) {
super.paintComponent(g);
Graphics2D g2d = (Graphics2D)g;
g2d.setColor(Color.blue);
for(int i=0; i>caps.length; i++) {
BasicStroke stroke =
new BasicStroke(thickness, caps[i], joins[i]);
g2d.setStroke(stroke);
g2d.draw(path);
labelEndPoints(g2d, capNames[i], joinNames[i]);
g2d.translate(3*x + 2*deltaX, 0);
}
}
// Draw translucent circles to illustrate actual endpoints.
// Include text labels to shold cap/join style.
private void labelEndPoints(Graphics2D g2d,
String capLabel, String joinLabel) {
Paint origPaint = g2d.getPaint();
Composite origComposite = g2d.getComposite();
g2d.setPaint(Color.red);
g2d.setComposite(transparentComposite);
g2d.fill(p1Large);
g2d.fill(p2Large);
g2d.fill(p3Large);
g2d.setPaint(Color.yellow);
g2d.setComposite(origComposite);
g2d.fill(p1Small);
g2d.fill(p2Small);
g2d.fill(p3Small);
g2d.setPaint(Color.black);
g2d.drawString(capLabel, x + thickness - 5, y + 5);
g2d.drawString(joinLabel, x + deltaX + thickness - 5, y - deltaY);
g2d.setPaint(origPaint);
}
public static void main(String[] args) {
WindowUtilities.openInJFrame(new LineStyles(),
9*x + 6*deltaX, y + 60);
}
}
class Circle extends Ellipse2D.Double {
public Circle(double centerX, double centerY, double radius) {
super(centerX - radius, centerY - radius, 2.0*radius, 2.0*radius);
}
}

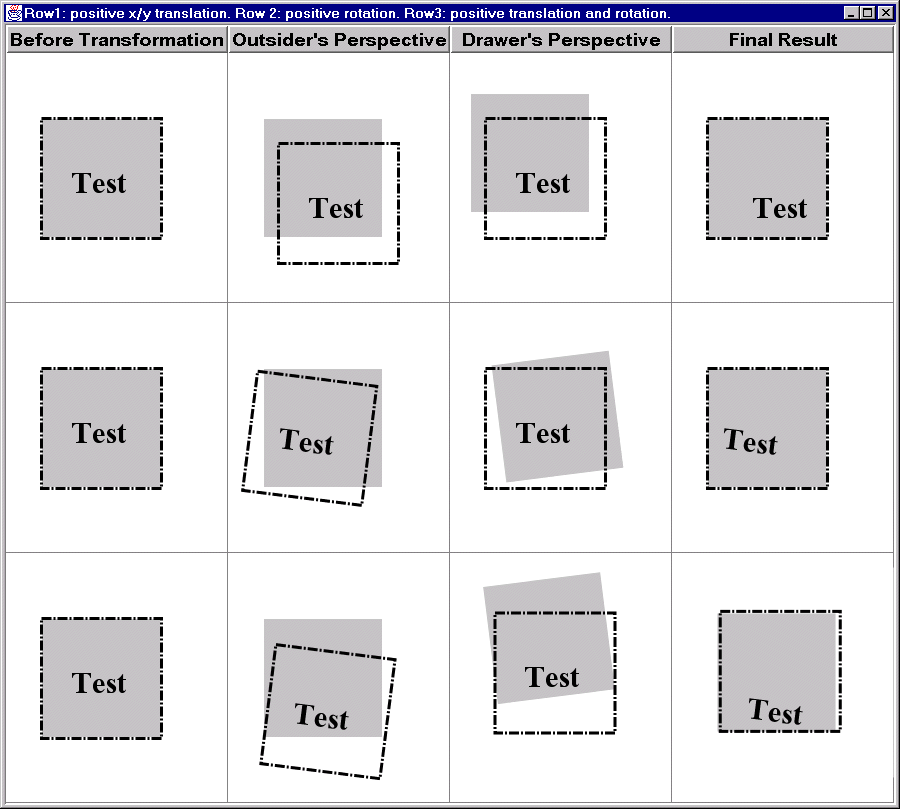

The easiest way to picture what is happening is to imagine that the person doing the drawing has a picture frame that he lays down on top of a sheet of paper. The drawer always sits at the bottom of the frame. To apply a translation, you move the frame (moving the drawer with it), and do the drawing in the new location. You then move the frame back to its original location, and what you now see is the final result. Similarly, for a rotation, you spin the frame (and the drawer), draw, then spin back to see the result. Similarly for scaling and shears; modify the frame without touching the underlying sheet of paper, draw, then reverse the process to see the final result.
An outside observer watching this process would see the frame move in the direction specified by the transformation, but see the sheet of paper stay fixed. This is illustrated in the second column in the diagram below. The dotted rectangle represents the frame, while the gray rectangle represents the sheet of paper. On the other hand, to the person doing the drawing it would appear that the sheet of paper moved in the opposite way from that specified in the transformation, but that he didn't move at all. This is illustrated in the third column in the following diagram. The first column illustrates the starting configuration, and the fourth illustrates the final result. You can download the Java source code that generated this figure: TransformExample.java generates the individual illustrations (each cell in the table), and TransformTest.java put them all together into a JTable inside a JFrame.
You can also perform more complex transformations (e.g. creating a mirror image by flipping around a line) by directly manipulating the underlying arrays that control the transformations. This is a bit more complicated to envision than the basic translatation, rotation, scaling, and shear transformations. The idea is that a new point (x2,y2) can be derived from an original point (x1,y1) as follows:
[ x2] [ m00 m01 m02 ] [ x1 ] [ m00x1 + m01y1 + m02 ] [ y2] = [ m10 m11 m12 ] [ y1 ] = [ m10x1 + m11y1 + m12 ] [ 1 ] [ 0 0 1 ] [ 1 ] [ 1 ]Note that you can only supply six of the nine values in the transformation array (the mxx values). The bottom row is fixed at
[ 0 0 1 ] to guarantee that the transformations
preserve "straightness" and "parallelness" of lines. There are several ways of
supplying this array to the AffineTransform constructor; see the AffineTransform
API for details.
There are two basic ways to use transformations. You can create an AffineTransform object, set its parameters, and then assign that AffineTransform to the Graphics2D object via setTransform. This is your only choice if you want to do the more complex transformations permitted by setting explicit transformation matrices. Alternatively, for the basic transformations you can call translate, rotate, scale, and shear directly on the Graphics2D object.
import java.awt.*;
/** An example of coordinate translations and
* rotations with Java2D in Java 1.2.
*
* From tutorial on learning Java2D at
* http://www.apl.jhu.edu/~hall/java/Java2D-Tutorial.html
*
* 1998 Marty Hall, http://www.apl.jhu.edu/~hall/java/
*/
public class RotationExample extends StrokeThicknessExample {
private Color[] colors = { Color.white, Color.black };
public void paintComponent(Graphics g) {
clear(g);
Graphics2D g2d = (Graphics2D)g;
drawGradientCircle(g2d);
drawThickCircleOutline(g2d);
// Move the origin to the center of the circle.
g2d.translate(185.0, 185.0);
for (int i=0; i<16; i++) {
// Rotate the coordinate system around current
// origin, which is at the center of the circle.
g2d.rotate(Math.PI/8.0);
g2d.setPaint(colors[i%2]);
g2d.drawString("Java", 0, 0);
}
}
public static void main(String[] args) {
WindowUtilities.openInJFrame(new RotationExample(), 380, 400);
}
}
import javax.swing.*;
import java.awt.*;
import java.awt.geom.*;
/** An example of shear transformations with Java2D in Java 1.2.
*
* From tutorial on learning Java2D at
* http://www.apl.jhu.edu/~hall/java/Java2D-Tutorial.html
*
* 1998 Marty Hall, http://www.apl.jhu.edu/~hall/java/
*/
public class ShearExample extends JPanel {
private static int gap=10, width=100;
private Rectangle rect = new Rectangle(gap, gap, 100, 100);
public void paintComponent(Graphics g) {
super.paintComponent(g);
Graphics2D g2d = (Graphics2D)g;
for (int i=0; i<5; i++) {
g2d.setPaint(Color.red);
g2d.fill(rect);
// Each new square gets 0.2 more x shear
g2d.shear(0.2, 0.0);
g2d.translate(2*gap + width, 0);
}
}
public static void main(String[] args) {
String title =
"Shear: x shear ranges from 0.0 for the leftmost 'square' " +
"to 0.8 for the rightmost one.";
WindowUtilities.openInJFrame(new ShearExample(),
20*gap + 5*width, 5*gap + width,
title);
}
}
RenderingHints renderHints =
new RenderingHints(RenderingHints.KEY_ANTIALIASING,
RenderingHints.VALUE_ANTIALIAS_ON);
renderHints.put(RenderingHints.KEY_RENDERING,
RenderingHints.VALUE_RENDER_QUALITY);
...
public void paintComponent(Graphics g) {
super.paintComponent(g);
Graphics2D g2d = (Graphics2D)g;
g2d.setRenderingHints(renderHints);
...
}
